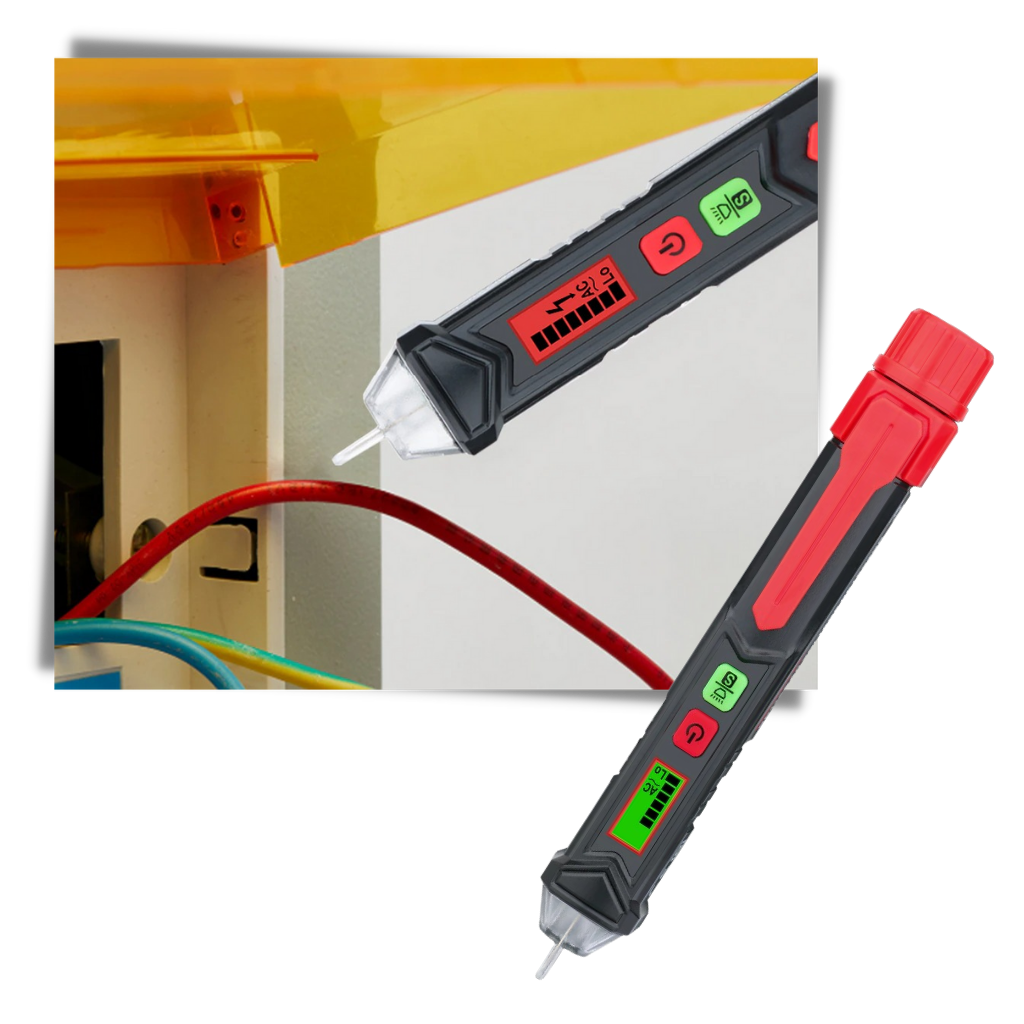

Pen for measuring voltage

Voltmeter

Do you work with electricity? If so, you want to provide yourself with the best work tools, right? After all, it's not just about completing tasks efficiently, but also about your safety and that of others. Measuring voltage and carrying out electrical tests has never been so easy. This smart pen-shaped voltage meter will make the task efficient and safe for you.

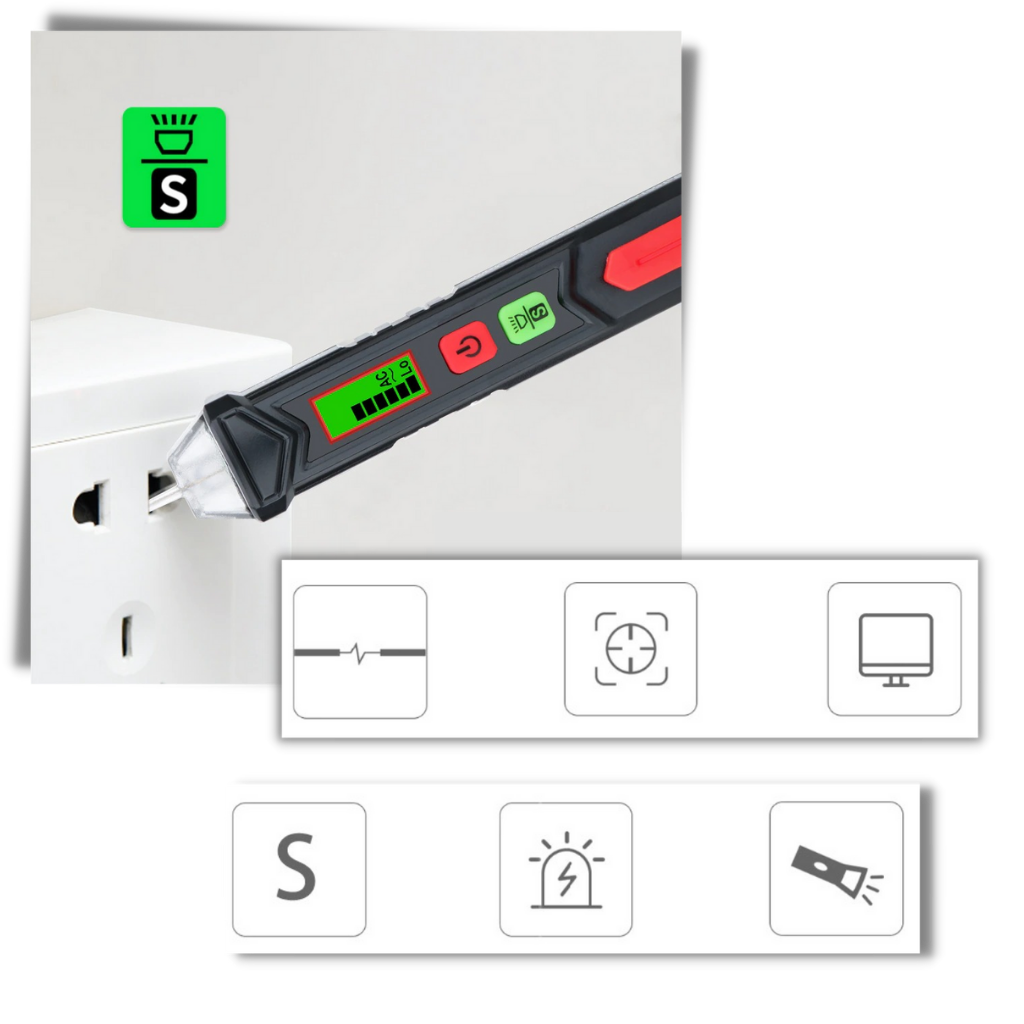

Multiple functions

Enjoy using this pen-shaped voltage meter thanks to its diverse functions. You can read all measurement results on a high-quality LCD display.

Adjust the sensitivity of the measurement depending on whether you want to work with industrial power consumption or household appliances. The low sensitivity range is AC48-1000V while the high sensitivity range is AC12-1000V. Switch between them by simply clicking on the corresponding button. The device also allows you to easily identify the cable break point.

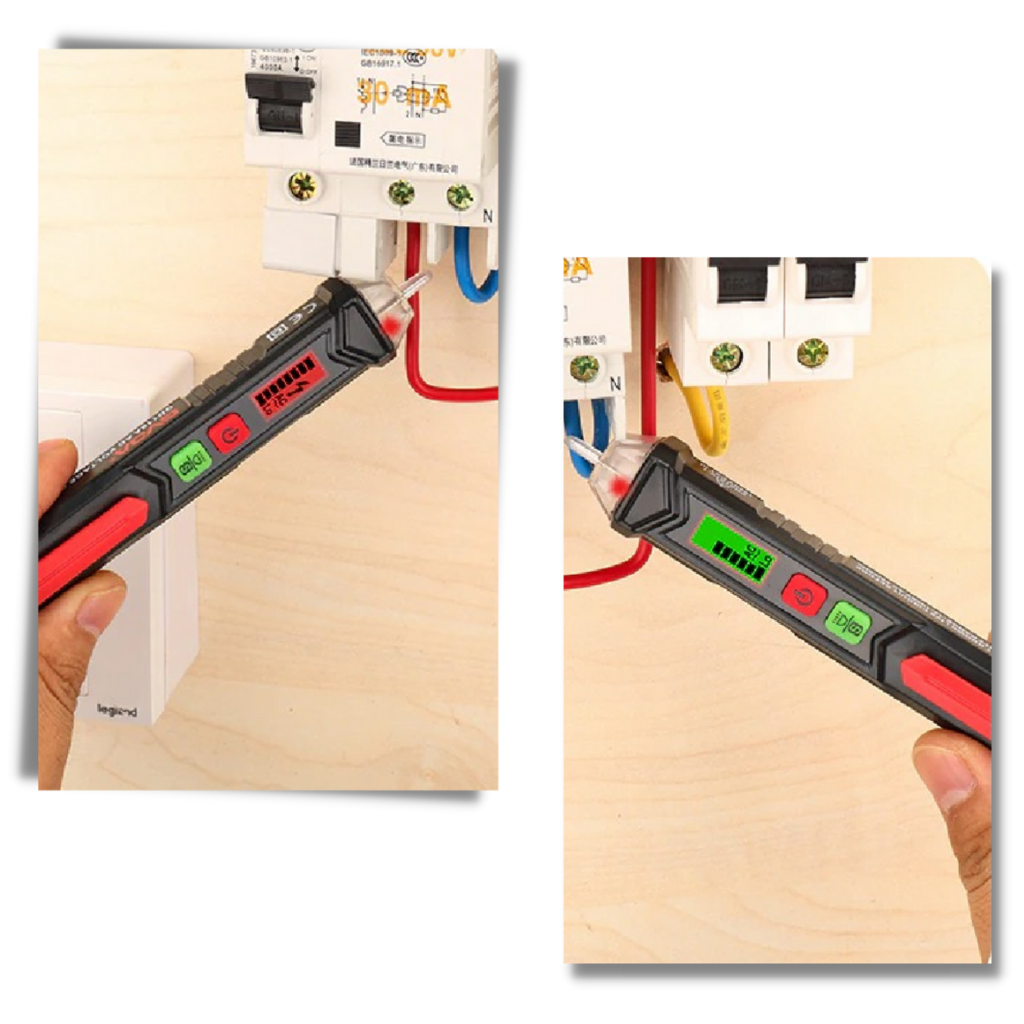

Zero Line and Firewire detection

This useful pen-shaped meter also helps you detect Firewire and Zero Line. Focus on the sound and light signals displayed by the device. When the cable signal is weak (zero line detected), the beep is slow and the signal indicator turns yellow. However, when the Firewire is recognized, you will hear a faster beep and the signal indicator will turn red.

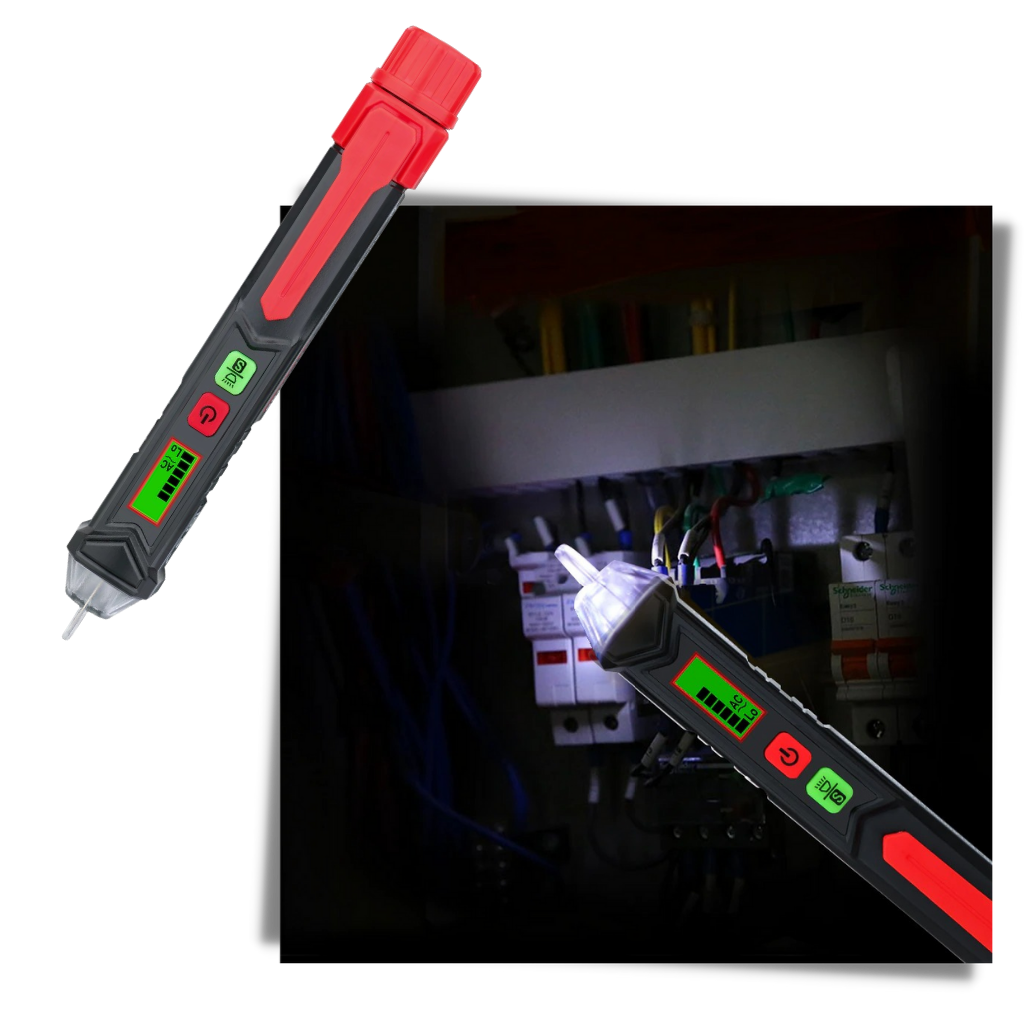

LED flashlight lighting

Not all cables and electrical lines are laid in easily accessible and exposed locations. Accessing some of them can be really difficult. Thanks to the integrated LED flashlight option, this voltage meter can be used to work in dark environments. Just turn on the bright LED light and start working as the room is well lit. You can also use the infrared light option or both types of light at the same time.

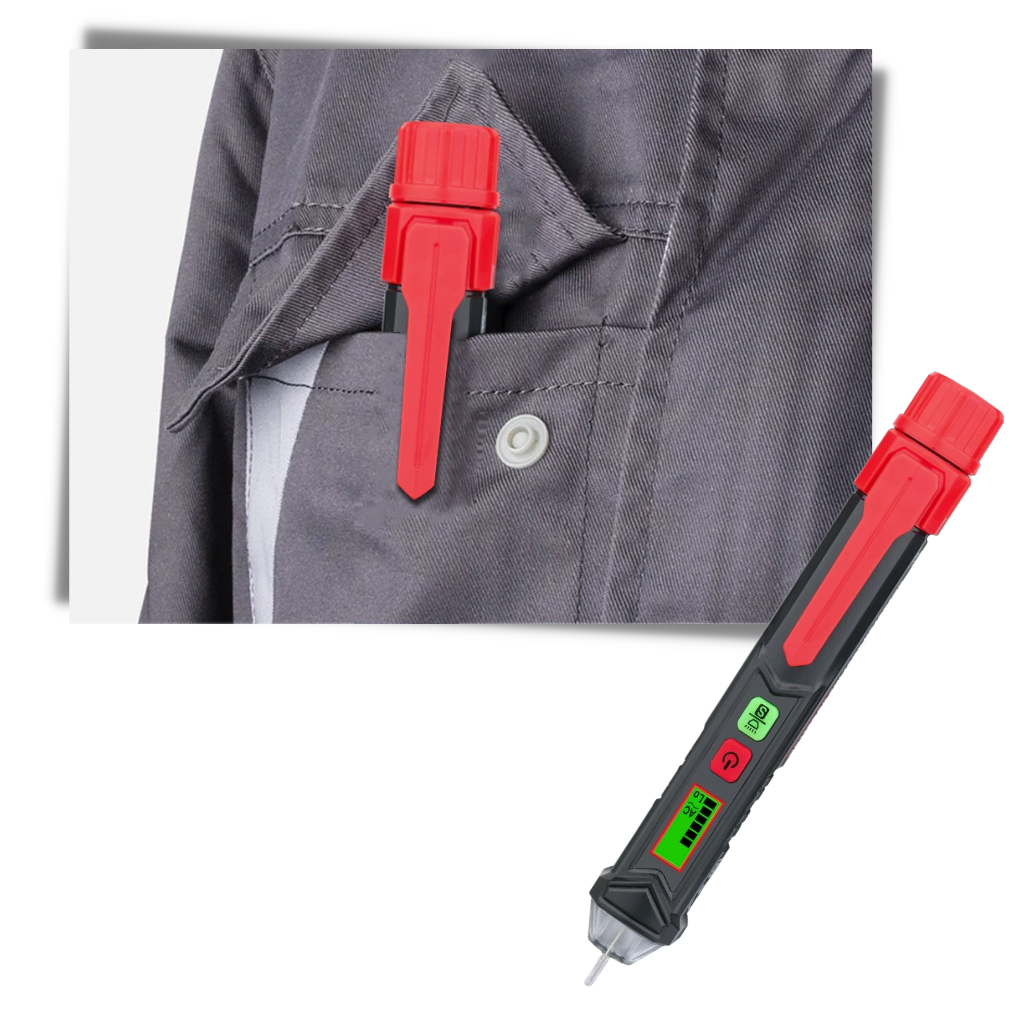

Wireless and secure

Another great feature of this work accessory is its cordless design. Powered by two 1.5V AAA batteries, this handy voltage measuring pen requires no wires or cables to do its work.

Thanks to the high-quality insulation, you can carry out non-contact inspections and ensure your safety.

Even though this voltage meter has so many different features, it is still lightweight and compact. Since it is shaped like a pen, it doesn't take up much space. The portable pen clip design allows you to take it with you even when not in use, so you always have it at hand. If you don't measure the voltage, you can always put it in your pocket. All buttons are easy to distinguish thanks to the bright colors of the device.

Technical characteristics :

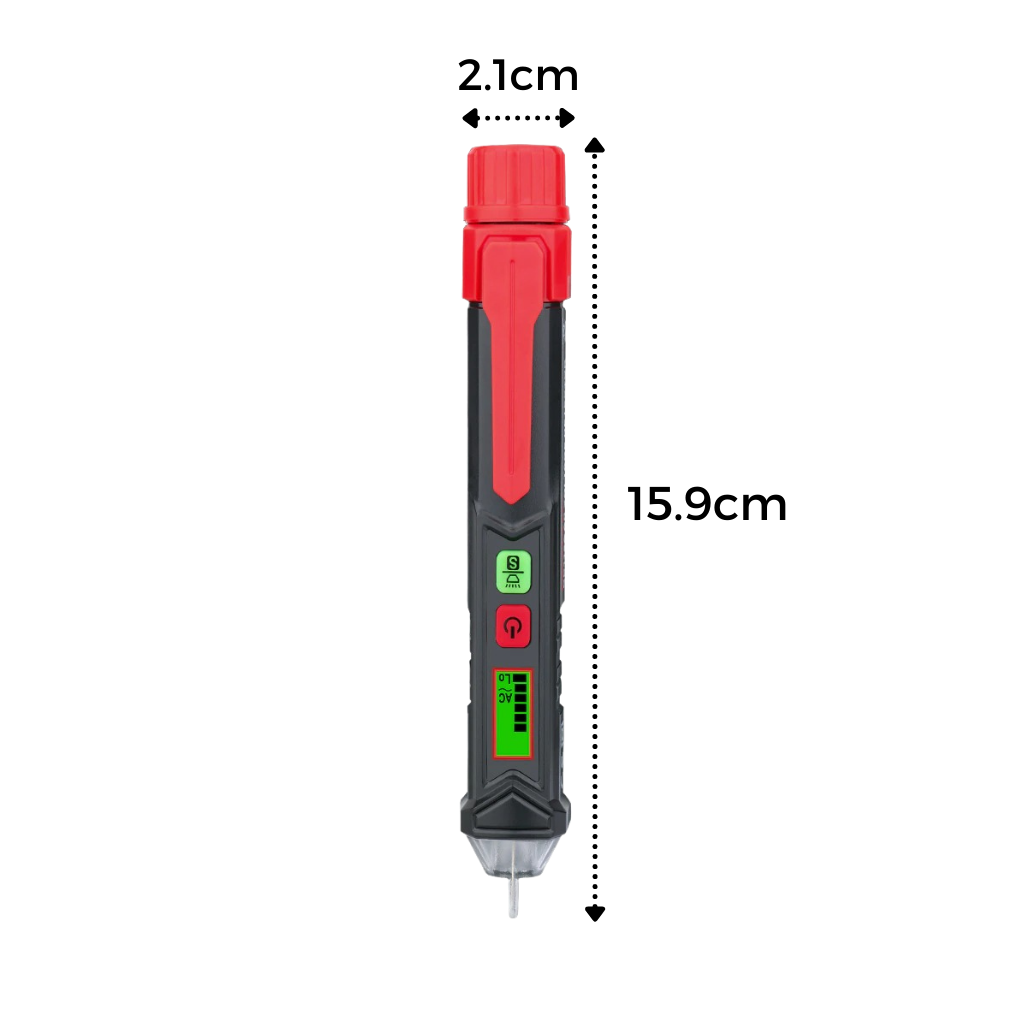

• Item Size: 2.1cm x 15.9cm
• Item Weight: Approx. 45g
• High sensitivity range: AC12-1000V
• Low sensitivity range: AC48-1000V
• Frequency: 50/60Hz
• Power supply: 2 x 1.5V AAA batteries (not included)
• Operating temperature: 0-40℃
• Safety rating: EN61010-1, -2-030; EN61326-1, CAT III 1000V

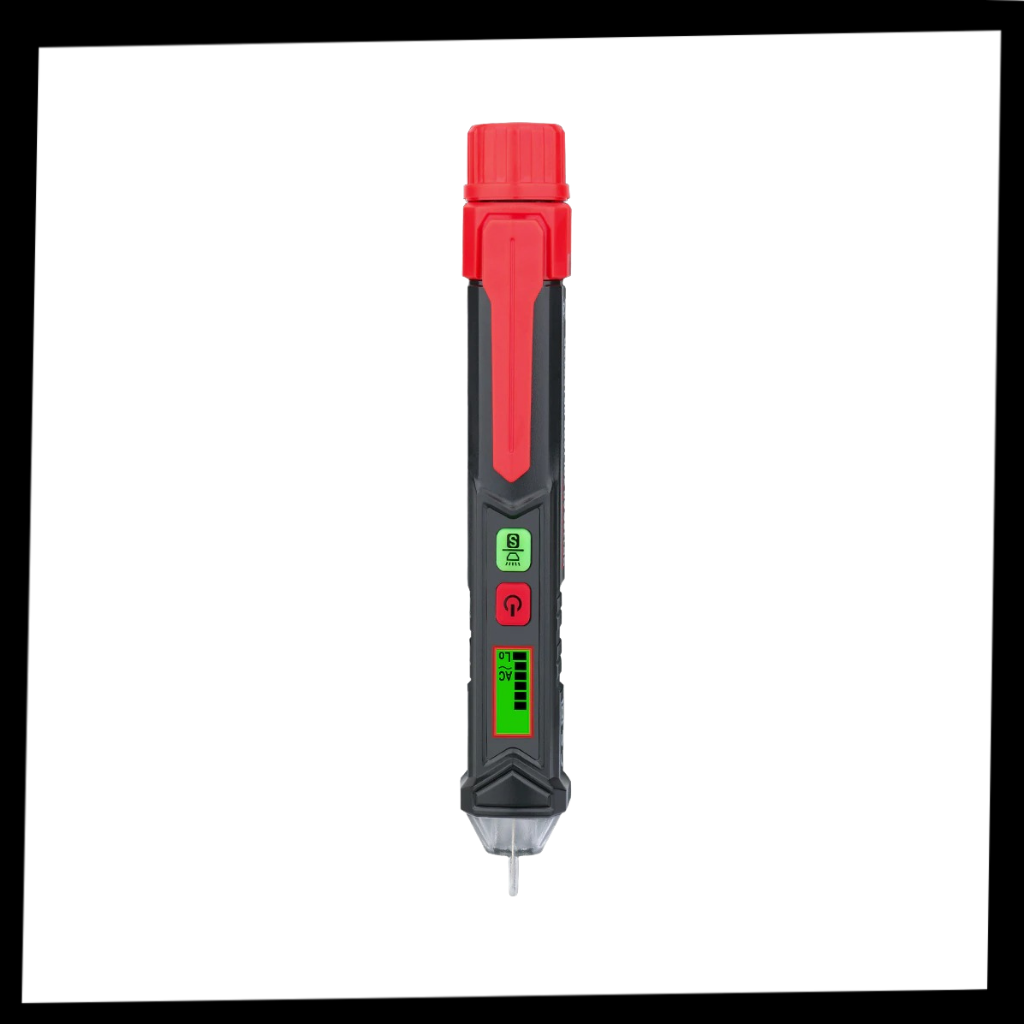

Included:

1 x Tension Measuring Pen
